High Calss Model

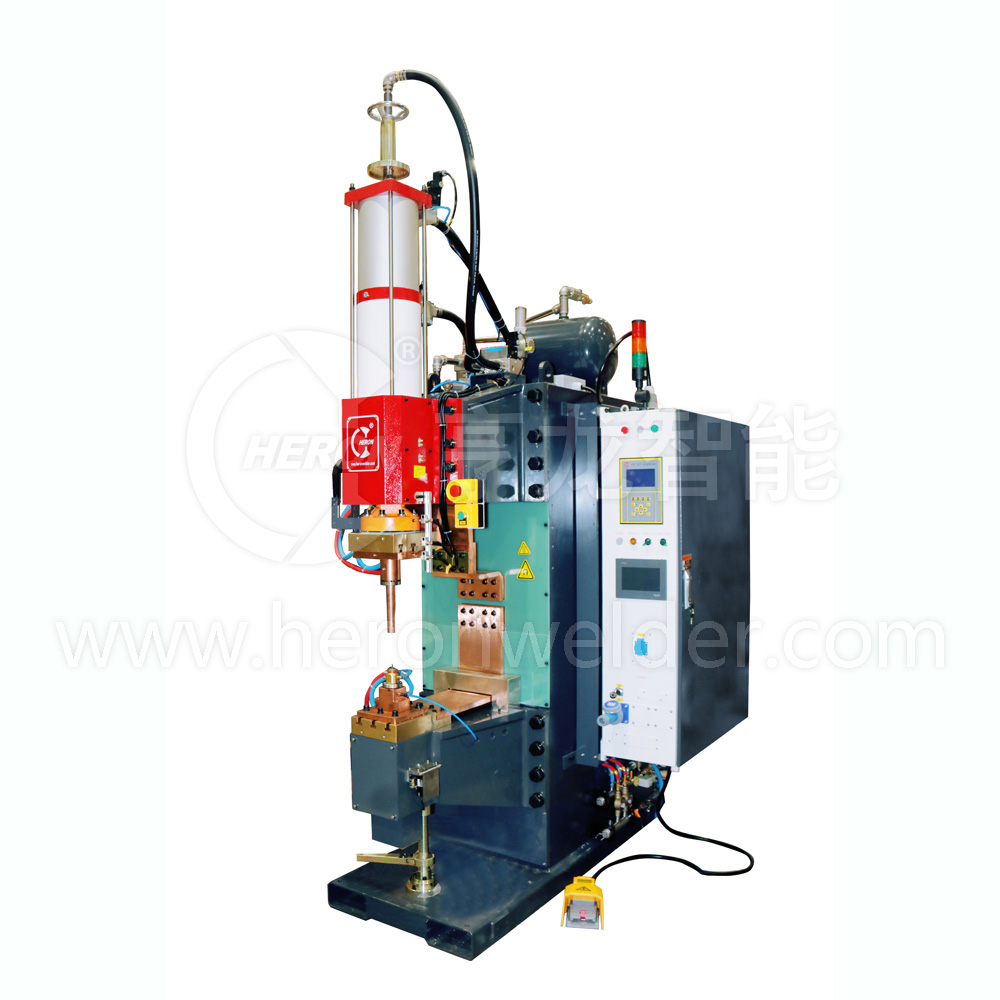

15/20/25/30/35/40KJ CD Spot/ Perss Welder

DR-15000/20000/25000/30000/35000/400

Product Features

Non-polarizedmedium voltage film capacitor, less likely to decay and explode

Welding transformer without water cooling

Compact body design

Short welding process, small heat affected zone, energy saving and environmental protection

200KVA grid, can output 1 million amps welding current

Stable welding quality

Basic Parameters

Model #		DR-6000	DR-10000	DR-15000	DR-20000	DR-25000	DR-30000	DR-35000	DR-40000
Volume of capacitor	μf	12000	20000	30000	40000	50000	60000	70000	90000
Rated Capacity	KVA	15	40	60	100	100	100	100	100
Power Supply	V/Φ/Hz	380/3/50
Max. Primary Current	A	40	79	79	79	132	132	158	158
Primary Cable	MM²	25	25	25	50	50	50	50	50
Max. Short Circuit Current	KA	60	80	100	130	140	140	175	230
Rated Duty Cycle	%	50	50	50	50	50	50	50	50
Secondary Empty Voltage	V	10/12	11/13	15/18	19/23	20/26.6	20/26.6	27/30	27/30
Welding Cylinder Size	Φ*L	Φ160*150	Φ200*150	Φ300*150	Φ300*150	Φ300*150	Φ300*150	Φ300*150	Φ250*150
Max. Working Pressure	N	10000	15000	34000	34000	34000	34000	34000	47000
Throat Depth	MM	400	400	400	400	400	400	400	400
Arm Gap	MM	400	400	400	400	400	400	400	400
Dimensions	H(MM)	2288	2303	2437	2437	2437	2437	2437	2437
	L(MM)	1495	1495	1500	1500	1500	1500	1500	1500
	W(MM)	1069	1069	1451	1451	1451	1451	1451	1451
